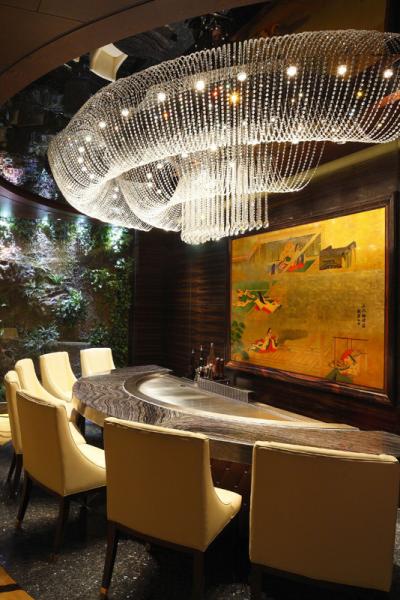

8 Seats Circle Shape Upper or Down Fume Exhaustion Teppanyaki Grill Table Electric Tube Heating

Teppanyaki Grill Structure

A piece of teppanyaki equipment consists of machine body, table decoration, fume purifier and air blower.
The cooking plate is made of special alloy steel of 20mm thickness to avoid deformation and discoloration.
The whole equipment is designed integrated to avoid further assembly or disassembly.
Non-standard equipment can be customized according to customers' requirement.

Interior Structure
Heating System:
Electric heating system: Electric tube heaters or electromagnetic plate. The temperature is controlled by temperature controller, and the main heating area is 450*400mm.

Double Fume Filters:
The fume filter and oil collecting drawer can make the oil directly drop into the collecting drawer and not get into the air duct...

Built-in Air Blower
Equipped according to the functions of the teppanyaki equipment. Heat preservative, low noise, 380v/0.25kw.

Electrostatic Fume Purifier Device
Customized according to the equipment functions and sizes (220v/0.25kw)
Remove fume particles larger than diameter0.1μm with efficiency of 93-97.2%
Designed with high and low voltage dust collecting polar plate separation technology for easy cleaning
Advanced point discharging technology
Power-off protection device in case of output disorder

Amazing Craftsmanship of 10 Seats Stainless Steel Electric Tube Heating Oval Shape Upper or Down Fume Exhaustion Teppanyaki Grill Table

Plate Leveling
1. Remove the steel slag and burrs during cutting.
2. Leveling the plate until the evenness is no more than 0.5mm within an area of 300mm2.

Machine Processing
1. The flat plates will be planned and shaped by a planner leaving 0.3mm allowance for grinding by a grinder.
2. The non-flat plates will be cut and planned first, leaving 0.3mm allowance for grinding by a grinding wheel.
3. The processing smoothness requirement is RA0.8.

Plate Installation
1. Install according to the technical requirements in the drawing, and the parts with marks of tolerance dimensions must be left with corresponding welding shrinkage allowance to ensure the sizes after welding are within the tolerance.
2. The welding must be full penetration, and the welded surface must be smooth without solder faults, solder skips, slag inclusion, gas holes, cracks or undercut.
3. Correction after the welding temperature is reduced to make the plate evenness less than 0.2mm within 500mm², and the straightness of each edge less than 0.2mm within 500mm².

Plate Polishing
1. Grinding the uneven weld bead then polish and shape carefully. The connecting part of the plate and trim strip must be smooth without sinking.
2. Fine grinding with fine wheel with processing requirement of the smoothness RA0.8.
3. Fine polishing of the whole plate with processing requirement of the smoothness RA0.4.

Parameters:

GREENARK was founded in 1996, with a 15,000m² production base, specializing in the research and development and manufacturing of teppanyaki and grill equipment. GREENARK is the drafter of national industry standard for teppanyaki equipment in China and the pioneer of the CNC intelligent fish grill oven category. It owns two major brands, "GREENARK Teppanyaki " and "GREENARK OVEN". Its products cover all commercial and high-end household teppanyaki and grill equipment, and have passed multiple domestic and international certifications such as IS0, CE, and ROHS. It drives catering innovation with creativity, creates a new category of commercial kitchen intelligent cooking, focuses on catering standardization, makes cooking simple - saves time, effort, and labor, and provides enterprises with a one-stop solution.
